Most ops leaders who run their first value stream mapping (VSM) exercise walk away with the same uncomfortable discovery: roughly 80% of total lead time is waiting, not working. The work itself is fast. The gaps between the work are where time disappears.

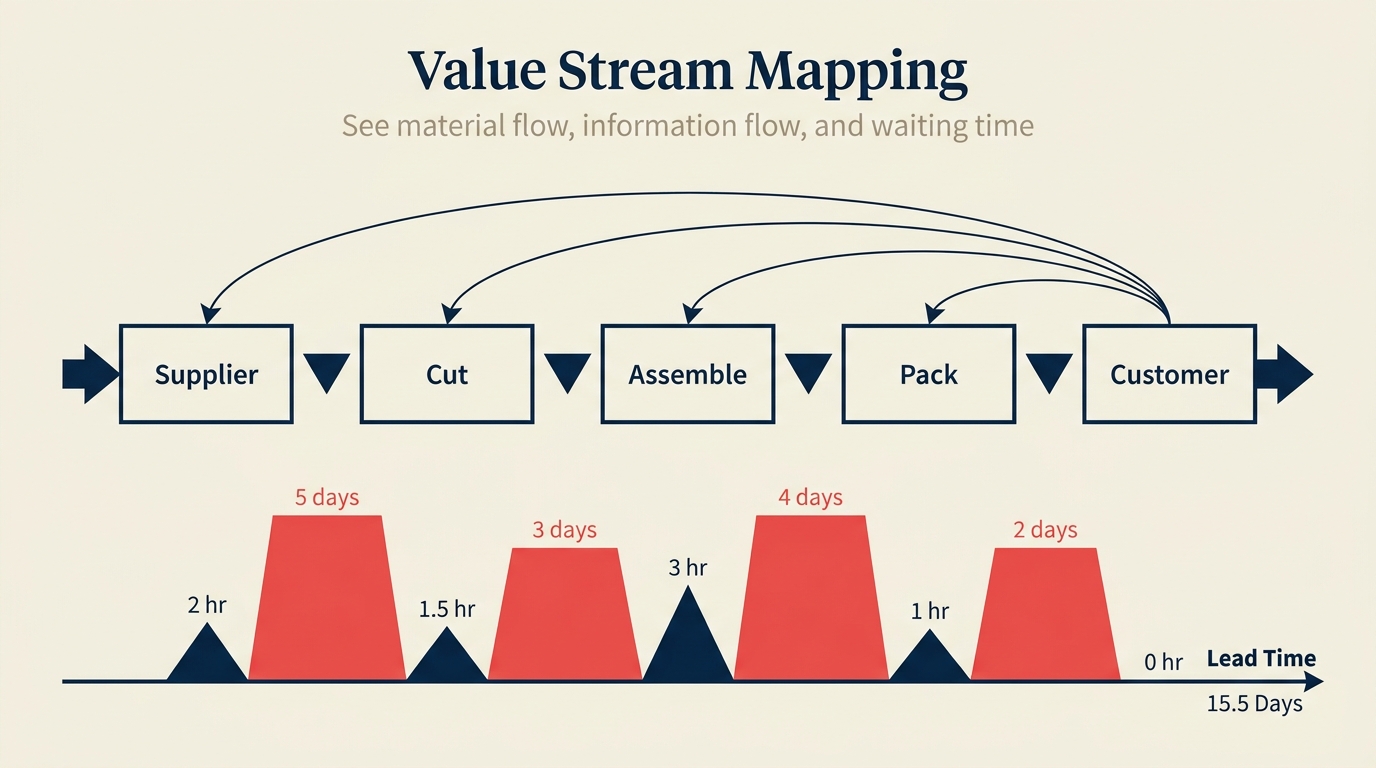

VSM makes that visible in a single diagram -- every process step, every inventory buffer, every information trigger, laid out from supplier to customer with a timeline below. Once you can see it all at once, the places worth fixing become obvious.

What is value stream mapping?

Value stream mapping is a lean tool that visualizes the complete, end-to-end flow of materials and information required to deliver a product or service to a customer. The output is a diagram -- typically hand-drawn first -- that captures every step a request or unit of product travels through, together with data boxes showing how long each step takes, how much work-in-progress sits between steps, and how information moves through the system.

The method has its roots in Toyota's material and information flow diagrams, developed as part of the Toyota Production System (TPS) during the 1980s. Toyota's engineers used these diagrams to teach factory-floor teams where waste was hiding and which changes would have the biggest impact on throughput. The approach entered mainstream English-language practice in 1999 when Mike Rother and John Shook published Learning to See (Lean Enterprise Institute), the book that standardized the symbols and the two-map approach -- current state, then future state -- that practitioners still use today.

VSM differs from a standard process map in one critical way: it treats the value stream as the unit of analysis, not the individual task. A process map asks "what happens?" VSM asks "what happens, how long does it take, how much waits between each step, and which of those activities actually matter to the customer?"

Key Facts

• Mike Rother and John Shook formalized VSM in Learning to See (Lean Enterprise Institute, 1999), standardizing the symbols and two-map approach still in use globally.
• Research from the Lean Enterprise Institute and Womack and Jones' Lean Thinking (Free Press, 1996) found that in most manufacturing value streams, only around 5% of total lead time consists of value-adding activity -- the rest is transport, waiting, and overprocessing.
• A 2021 study in the International Journal of Production Research found VSM adoption has expanded strongly into healthcare, software, and financial services, well beyond its manufacturing origins.

VSM symbols you need to know

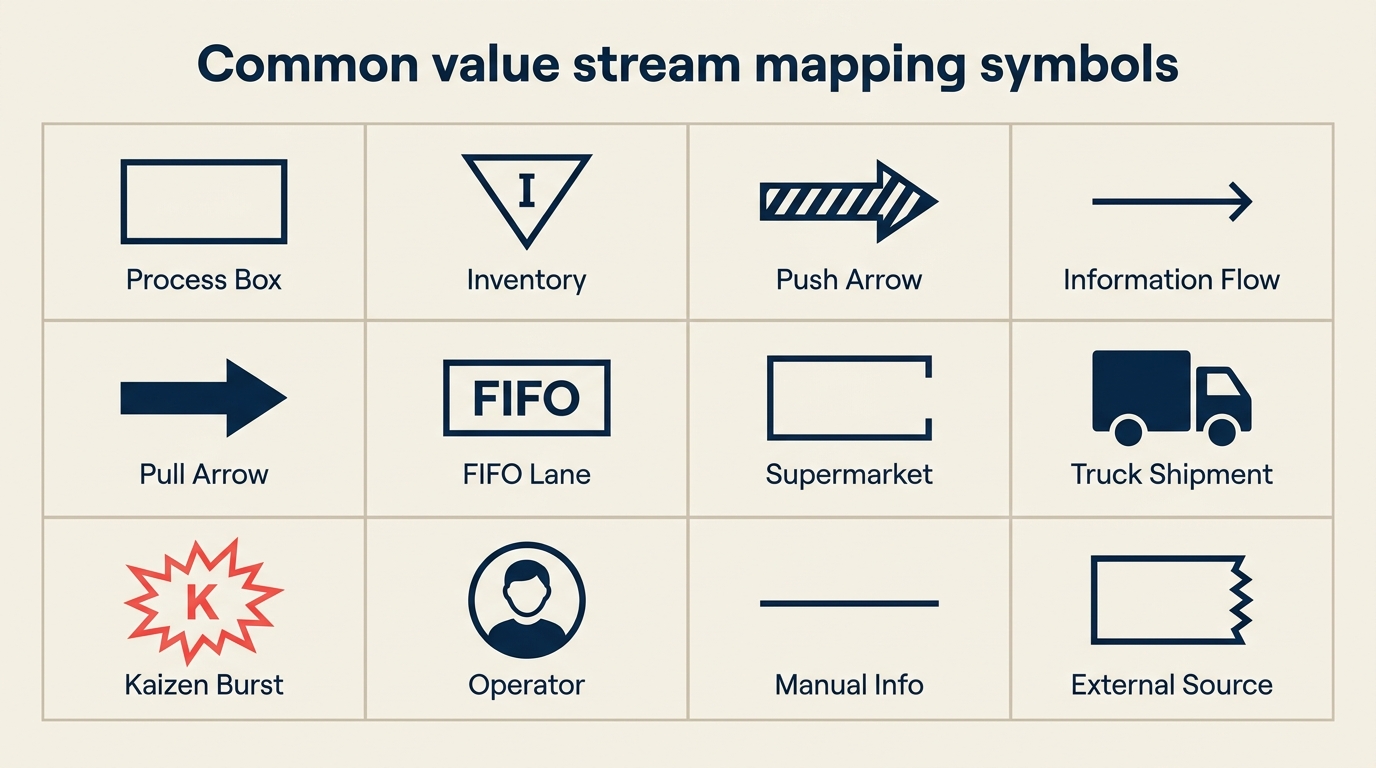

VSM uses a shared visual language so that any team member can read a map without a legend. These are the symbols you'll use on almost every map:

You don't need every symbol on every map. Start with the process box, inventory triangle, push arrow, and information flow line. Add the rest as your map demands them.

How to build a value stream map in 6 steps

Building a VSM is a physical, team-based activity. The best maps are drawn in pencil, on paper, on a wall -- not in software, at least not first.

Step 1: Pick your product family

Don't map everything. Choose one product family -- a group of products or services that pass through the same sequence of process steps. A map that tries to show every variant becomes unreadable. A focused map exposes real waste.

Step 2: Walk the process backward from the customer

Start at the customer end and physically walk upstream. Don't rely on how people think the process works. Watch what actually happens, in the sequence it actually happens. Walking backward prevents you from drawing the "intended" process instead of the real one.

Step 3: Capture process boxes and data boxes

For each step, draw a process box. Below it, draw a data box with at least: cycle time (CT), changeover time (CO), and number of operators. These numbers are what make the future-state map credible -- you can't improve what you haven't measured.

Step 4: Add material flows

Draw inventory triangles between process boxes. Label each with the current WIP count or, if known, the average time material sits there. Add push arrows or pull arrows to show how work moves between steps.

Step 5: Add information flows

Draw how information moves through the system. Who schedules each step? Does production planning push a weekly schedule to the floor? Does an order management system trigger releases? These information flows often reveal where poor scheduling creates the waiting shown in the inventory triangles.

Step 6: Draw the timeline

Below the process boxes and inventory triangles, draw a stepped timeline. The peaks below the line show process time at each step. The plateaus above the line show wait time between steps. Sum the plateaus to get lead time. Sum the peaks to get total process time.

Current state vs future state

A VSM exercise produces two maps, not one.

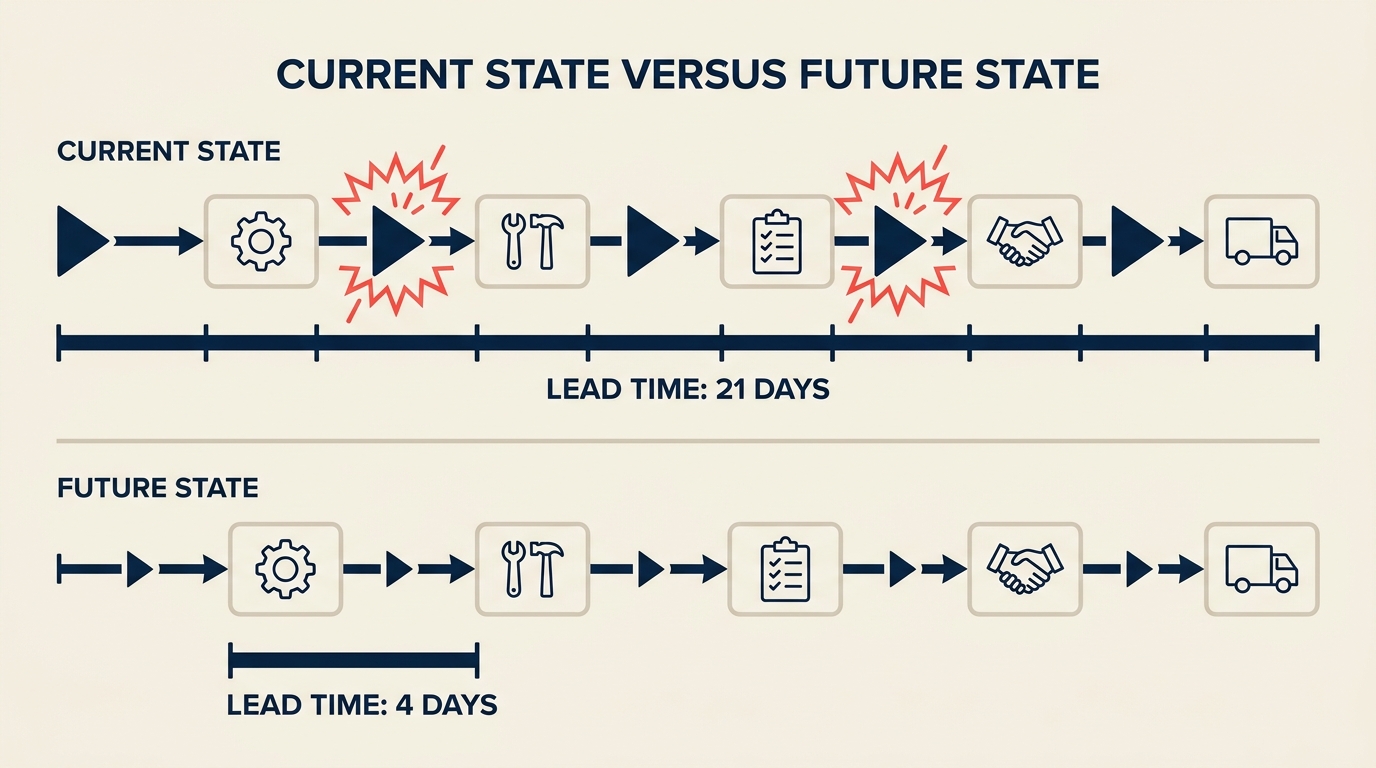

The current state map is a truthful picture of the value stream as it exists today -- every bottleneck, every pile of WIP, every scheduling handoff. Its purpose is not to embarrass anyone. It's to give the team a shared, accurate baseline that everyone has seen and agreed on.

The future state map is the lean ideal you'll work toward. You don't guess at it. You build it from the current state by asking: where is the customer-defined takt time (the rate at which customers demand product)? Which step sets the pace for the whole flow? Where can we introduce pull instead of push? Where should we create continuous flow and eliminate the queues between steps?

Kaizen bursts are how you bridge the two maps. Mark each area where you'll attack waste with a jagged kaizen burst on the current state. Each burst becomes a specific improvement project with an owner and a deadline. The future state map shows what the value stream will look like once those projects land.

The practical discipline here is to avoid jumping straight to solutions. Draw the current state honestly before you design the future state. Teams that skip straight to "what should it look like" tend to draw idealized processes that don't reflect the constraints the floor is actually working within.

Calculating lead time vs process time

The timeline at the bottom of a VSM diagram tracks two distinct numbers, and confusing them leads to bad improvement decisions.

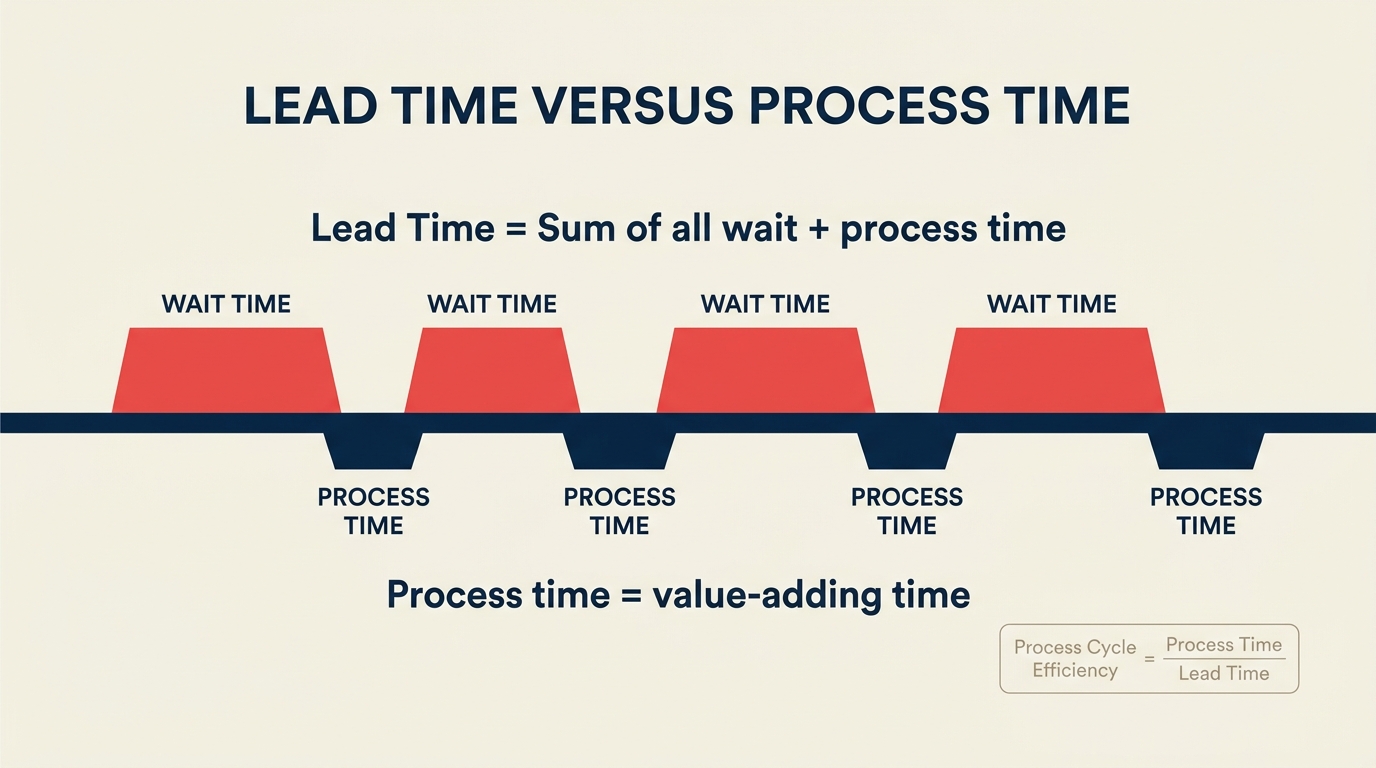

Process time (PT) is the value-adding time at each step -- how long a unit is actually being worked on. It's represented below the timeline as small peaks.

Lead time (LT) is the total elapsed time from the moment a customer request enters the value stream to the moment the customer receives the output. It includes all the waiting between steps, not just the work time. It's represented by the tall plateaus above the timeline.

Process Cycle Efficiency (PCE) = Process Time / Lead Time. A PCE below 10% is common in manufacturing and office processes. Raising it is the core goal of every future-state map.

Here's a simple worked example:

Lead time = 35 min + 7.5 hours = roughly 8 hours. Process time = 35 minutes. PCE = 35 / 480 = 7.3%.

The goal isn't to speed up the 35 minutes of work. The goal is to shrink the 7.5 hours of waiting.

Worked example: an invoice approval value stream

Consider a finance team that processes vendor invoices. The current state looks like this:

Total process time: 13 minutes. Total lead time: approximately 4.5 days. PCE: roughly 0.3%.

The kaizen bursts fall on the "Invoice received" queue (2 days of unprocessed invoices sitting in an email inbox) and on "Manager review" (batch processing once per day instead of on receipt). The future state cuts lead time to under 1 day by introducing a pull trigger -- the manager reviews within 4 hours of receipt, and the finance system auto-releases payments within 2 hours of approval.

Nothing about the 13 minutes of actual work changes. The entire gain comes from attacking wait time.

VSM vs process map vs swimlane diagram

VSM is often confused with other diagramming tools. Here's how they differ:

Choose VSM when you want to quantify waste. Choose a process map when you want to document steps. Use a swimlane when handoffs between teams are the core issue you're investigating.

The 8 wastes VSM helps you find

Every VSM session is, at its core, a waste-finding exercise. Lean methodology identifies 8 types of waste, sometimes remembered by the acronym DOWNTIME:

• Defects -- errors that require rework or scrapping, consuming time with no value created
• Overproduction -- producing more than the customer needs right now, creating WIP that has to wait
• Waiting -- time when work sits idle between steps, which is exactly what the VSM timeline makes visible
• Non-utilized talent -- skills and knowledge that the system never taps
• Transport -- unnecessary movement of materials, documents, or data between locations
• Inventory -- WIP, finished goods, or information sitting in queues beyond what's needed
• Motion -- unnecessary physical or digital movement by people doing the work
• Extra processing -- steps that add no customer value, such as re-entering data that already exists or approvals that don't change outcomes

VSM is particularly good at surfacing waiting and inventory waste because those two show up directly on the timeline and in the inventory triangles. The other six often appear when you dig into the data boxes at each process step.

Common mistakes when running a VSM

Even teams with good intentions make the same handful of errors on their first few maps:

• Mapping the process they wish existed, not the one that does. Walk the floor. Talk to the people doing the work. The actual flow almost always has workarounds and detours that don't show up in documented procedures.
• Skipping the data boxes. A VSM without numbers is a decoration. Cycle time, WIP count, and queue time are what connect the diagram to real improvement decisions.
• Drawing it in software first. Sticky notes and pencil on butcher paper keep the team engaged and the map easy to revise. Jumping to Visio or Miro before the current state is agreed on tends to anchor everyone to the first version.
• Building the future state map in isolation. The future state should be designed by the same cross-functional team that drew the current state. Designing it in a conference room without floor involvement produces a future state no one on the floor owns.
• Treating the map as the output. The map is only useful if it produces kaizen projects with owners and deadlines. A map on a wall that nobody acts on is just documentation.

Frequently asked questions

What's the difference between value stream mapping and process mapping?

A process map (or flowchart) shows you the sequence of steps in a process -- what happens, in what order, with what decisions. It's useful for documenting procedures and training people.

VSM goes further. It adds material flow, information flow, inventory levels, cycle times, and a timeline that separates process time from wait time. The goal of VSM isn't documentation -- it's waste identification and the design of a leaner future state. If you want to know "how does this work?", use a process map. If you want to know "where is the time going and what should we change?", use VSM.

How long should a VSM session take?

For a focused value stream in a single department -- like the invoice approval example above -- a current state map can be completed in 3 to 4 hours with a team of 4 to 6 people. Building the future state and identifying kaizen projects adds another 2 to 3 hours. For complex, multi-site, or end-to-end supply chain value streams, expect to spend 2 to 3 days. The more important factor isn't clock time -- it's whether the people who actually do the work are in the room.

Do you really need to walk the floor?

Yes. This is one of the few non-negotiable requirements in the VSM method. The Japanese principle Gemba -- "go to where the work happens" -- is central to the Toyota Production System that VSM comes from. Documented processes describe how work is supposed to happen. Walking the process shows you how work actually happens: the workarounds, the informal queues, the information that travels by text message instead of the system. Maps built from interviews or documentation alone consistently miss the highest-impact waste.

Can VSM be used in services and offices?

Absolutely. VSM originated on manufacturing shop floors but it translates directly to any process where work flows in a sequence toward a customer. Healthcare organizations map patient pathways from referral to discharge. Software teams map ticket intake to deployment. Finance teams map invoice receipt to supplier payment. The symbols and the timeline logic work the same way. The main adaptation for service VSM is that "inventory" usually means queued requests or documents rather than physical units, and "transport" often means information being moved between systems or inboxes rather than physical shipment.

VSM is one of the most useful tools in the process management toolkit -- not because it's complex, but because it forces a team to look at the whole flow at once. Most improvement efforts fail because they optimize one step without seeing what that does to the steps around it. VSM prevents that by making the full picture impossible to ignore.

Once you've mapped your current state and built your future state, the next question is how to sustain the improvement. That's where standard operating procedures lock in the gains, and methods like Six Sigma's DMAIC provide a disciplined framework for the improvement projects the kaizen bursts identify. For a broader view of how VSM fits into ongoing process governance, business process management and process optimization cover the organizational systems that keep value streams moving in the right direction over time.
